IR 24key 5050 led RGB strip controller -20 - 60 for adjustable light brightness, speed

Place of Origin:

Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

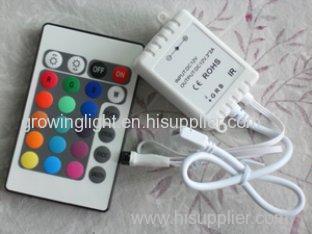

IR 24key 5050 led RGB strip controller -20 - 60

IR 24key 5050 led RGB strip controller -20 - 60 for adjustable light brightness, speed

Specifications:

Model	LT-IR24 A/C IR24key 5050RGB strip controller
Work temperature	-20-60
Input voltage	DC5V, DC12V, DC24V
Size	633522mm
Gross weight	75g
Out put	3 channels
Output current	2A*3ch
Connecting mode	common anode / common cathode
Power	30W(5V), 72W(12V), 144W(24V)
All of the brightness and the speed is adjustable

DC5V, 12V, 24V led controller with remote
Connect RGB strip:300 LED
Used with RGB led strips&modules
24 Key IR control
CE, ROHS

Packaging & Delivery
Packaging Detail : Normal white box packing:1pc/box
1.Supply Voltage: DC5V, 12V , 18V, 24V optional(specify the required voltage on orders)
2.output power: 30W(5V), 72W(12V), 144W(24V
3.output: 3 CMOS open-drain output
4.connection mode: common anode, Common cathode
5.Display Mode: 24 Key IR control, 20 modes speed adjustable brightness adjustable
6.Working Temperature -20-60°C
7.Connect RGB strip:5M/10M

Applications:
LED intelligent contrioller is dedicated to adjust the brightness of LED lights, which adopted the most advanced PWM (Pulse-Width Modulation) digital brightness-adjusting technology at present, users can either operate manually or use the IR wireless remote controller to control the brightness in the distance, they are suitable for commercial and household 86-style socket installation, the socket can be installed outside or inside the wall. LED intelligent dimmer can meet different brightness requirements at different time, and can extend life tenure of LED, suitable for adjusting the brightness of both low-power and hi-power LED illumination lights, energy-saving.
